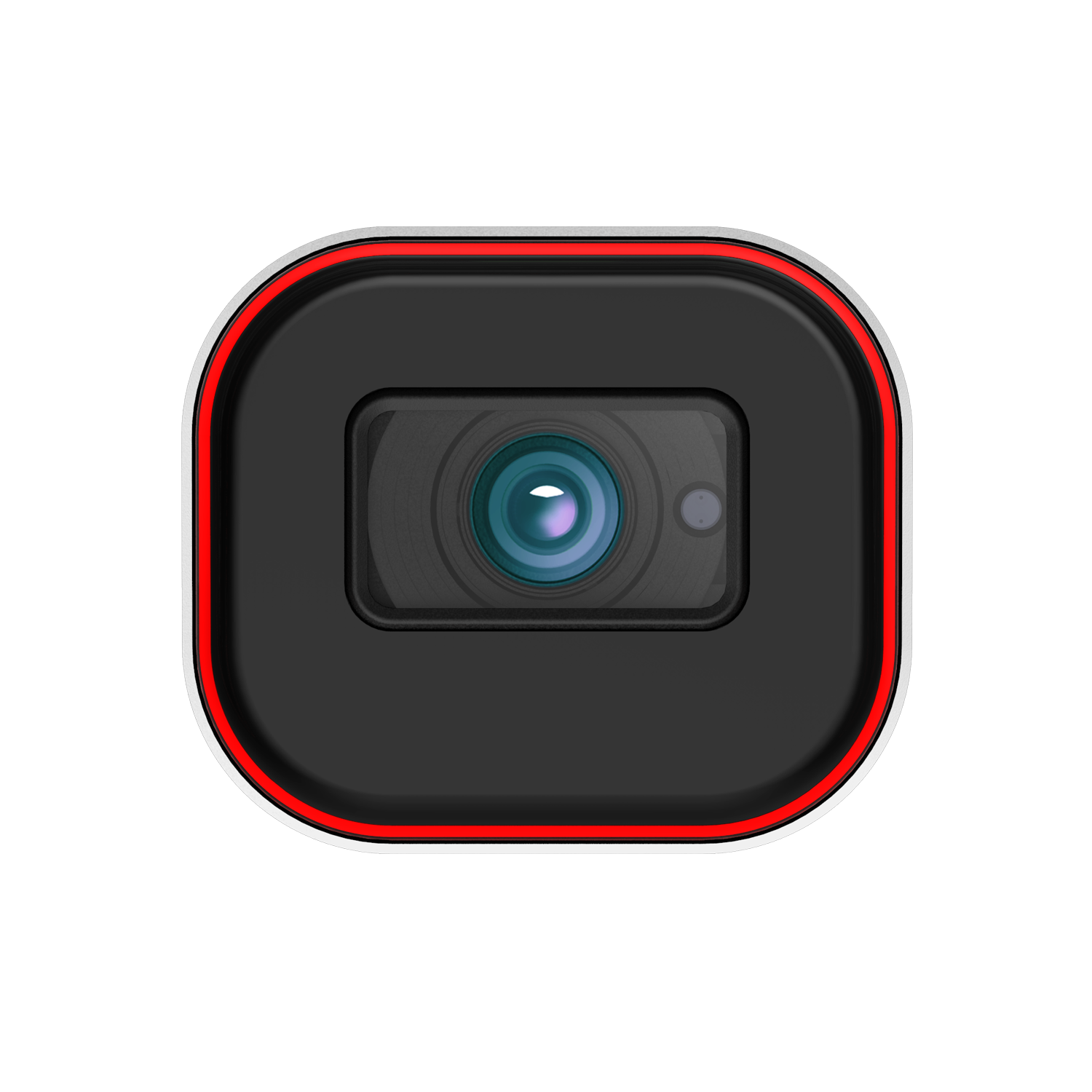

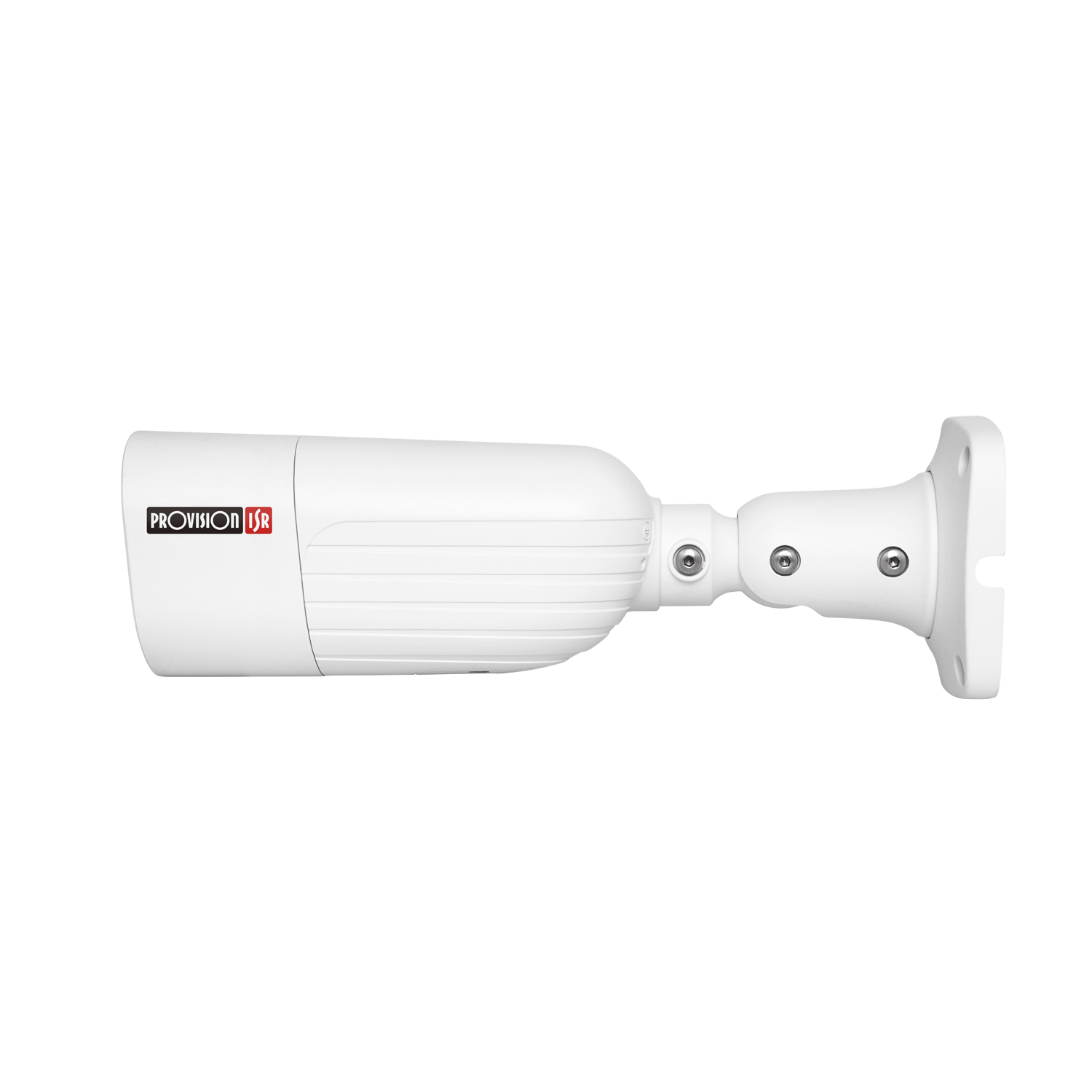

I6-220LPRN-MVF2

I6-220LPRN-MVF2

2MP MVF Lens Bullet Camera with IR LED and LPR Analytics
Compare

I6-220LPRN-MVF2

I6-220LPRN-MVF2
2MP MVF Lens Bullet Camera with IR LED and LPR Analytics
• Sensor: 1/1.8″ CMOS (16:9)
• Resolution: 1920×1080 25/30FPS (2MP)
• Lens: 8-32mm MVF(46°-16°)
• True Day&Night – ICR
• Illumination: 80m (2 High-Power IR LEDs)
• Compression: H.265+/ H.264+ / H.265 / H.264 / MJPEG
• Quantum IoT Nano agent by Check Point™
• General Analytics: Camera Tampering
• License plate recognition
• Integrated vehicle Metadata
• True WDR(120dB), BLC, HLC, ROI
• SD Card: Event/Schedule Record (Up to 256GB)
• Alarm in + Alarm out
• Audio input + Audio output
• ONVIF: Profile G/S/M
• Water Proof: IP67
• Weight: ~1140g
• Power: DC12V/~1050mA / PoE/~11.5W

Compare
Main Features

2MP
1920X1080 Resolution
8-32mm Motorized Vari-Focal (42°-16°)
3D-DNR
IP67
2-Way Audio
Alarm in + out

VIDEO Placeholder (no video link in the range file)
NDAA CompliantYes
Sensor Size1/1.8″ CMOS (16:9)
Sensor Family1/2
Case TypeLarge Bullet
P2P SupportYes
Max. Resolution2MP
Anti VandalNo
Max. Resolution2MP
Audio-InYes
Water ProtectionIP67
Real TimeYes
Alarm-InYes
Built-In MicrophoneNo
Alarm-OutYes
Face_databaseYes
TriggersYes
Recognition_per_secondYes
Recognition_distanceYes
license_plate_databaseYes
SpeedYes
AccuracyYes
AutomationYes
DetectYes
RecognizeYes
IdentifyYes
Face_RecognitionYes

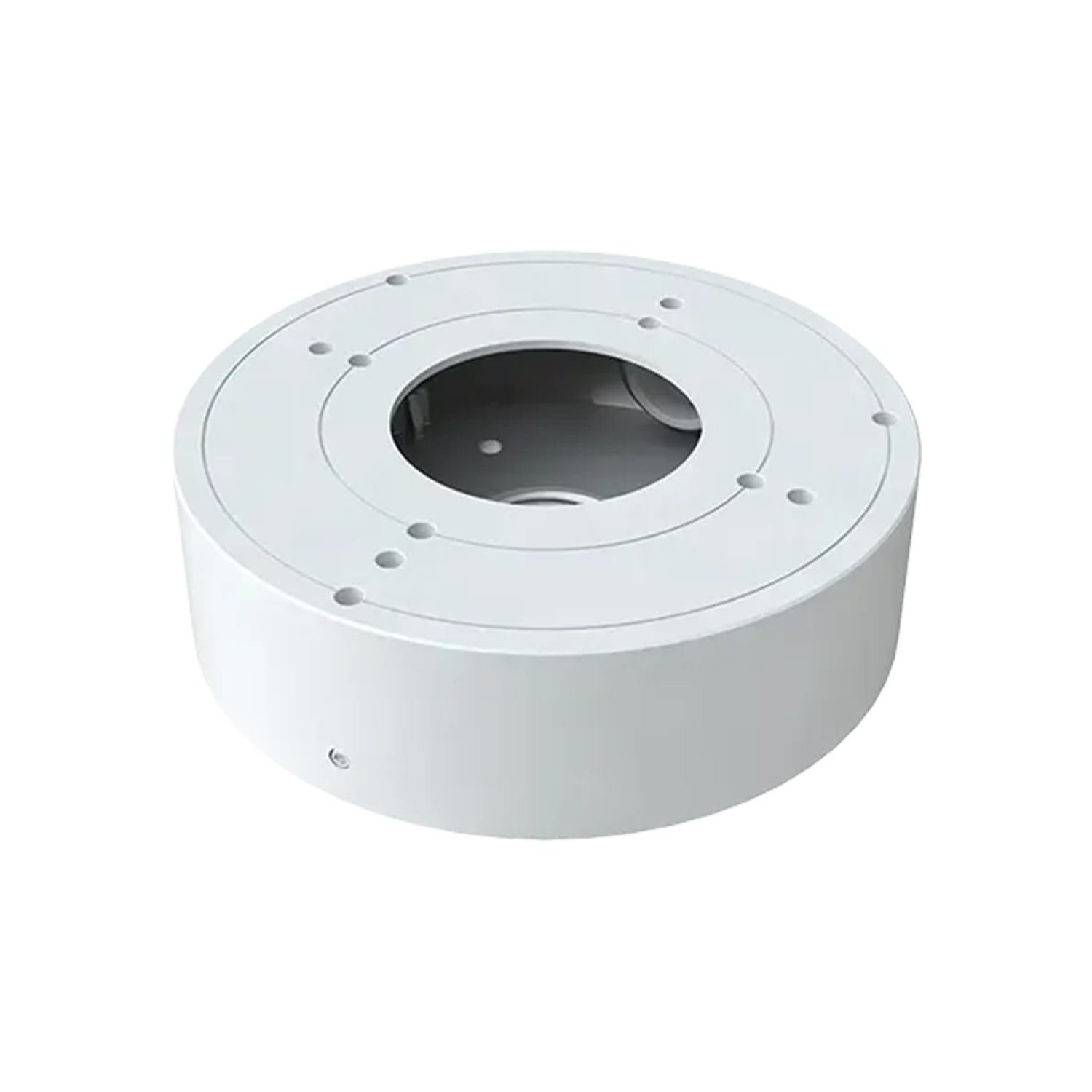

Matching_Junction_boxYes
Technical_drawYes
LeaFletYes
Ethernet100Mbps

2MP
1920X1080 Resolution
8-32mm Motorized Vari-Focal (42°-16°)
3D-DNR
IP67
2-Way Audio
Alarm in + out

Download Specs

Download Specs

Download Manual

Download Firmware

v5.3.1.13819_RD20260615

Download Firmware Archive

Download Video Player

Download CE

Download FCC

Download Ossia VMS

Download Ossia VMS Archive

Download IP Manager

Download IP Manager Archive

3rd Party Cyber Protection

General
Quantum IoT Nano agent by Check Point™
Protection Methods
Shell injection protection, File Monitor, Import-Table Protection, Dynamic-Memory Protection

NDAA Compliant

NDAA Compliant
Yes

Video

Image Sensor
1/1.8" CMOS (16:9)
Effective Pixels
1920x1080
Electronic Shutter
1s ~ 1/100000s
Day & Night
ICR
Min. Illumination
Day: 0.1lux / Night: 0.001lux (@F1.6, AGC on) 0lux with IR on

Audio

Audio compression
G.711A/G.711U
Communication
Two-Way Audio


Image Settings
AWB, AGC Adjustable, Exposure Mode (Auto) Sharpness, Saturation, Brightness & Contrast Adjustable
Image Enhancement
True WDR(120dB), BLC, HLC, ROI
Noise Reduction
3D-DNR
Image Orientation
Mirror/Flip
Privacy Zone
Yes

Events and Analytics

Analytics
General Analytics: Camera Tampering License plate recognition Integrated vehicle Metadata
Motion Detection
Yes
Triggers
Snapshot / Email / FTP for allow/block lists
Recognition per second
2 plates per second
Recognition distance
16~48m
license plate database
LPR (database):10000 Plate Database
Speed
LPR (detection speed): 0-120Km/h
Accuracy
Recognition rate up to 99% under good conditions
Automation
Automation: Can work as a standalone for gate automation
Metadata
Vehicle: License Plate Color, Vehicle Color, Vehicle Type, Vehicle Brand, Vehicle Model

Compression

Resolution
2MP (1920x1080) / 1MP (1280x720) / D1 (704x576) 360p (640x360) / CIF (352x288)
Frame Rate
1-25/30FPS In Normal Mode. 1-50/60FPS in HFR Mode***
Video Compression
H.265+/ H.264+ / H.265 / H.264 / MJPEG**
Multi-Stream
Master Stream: 2MP (1920x1080) / 1MP (1280x720) (1~30fps) Sub-Stream: 1MP/360p/D1/CIF Third Stream: D1/CIF (1~30fps)
Bit Rate
64Kbps ~ 4Mbps@H.265 / 128Kbps ~ 6Mbps@H.264
Encode Mode
VBR/CBR
Image Quality
Five levels under VBR; Free adjustment under CBR

Lens

Lens (Field of View)
8-32mm MVF(46°-16°)
Iris
DC Iris
Lens Mount
Ø14 Mount

Network

User Access
Supports simultaneous monitoring of up to 10 users with multi-stream real-time transmission
Network Protocol
IPv4, IPv6, TCP, UDP, DHCP, NTP, DDNS, SNMP, 802.1X, RTSP, RTSPS, RTMP, UPnP, Email, FTP, HTTP POST, HTTPS, QoS, Auto Report, P2P
Remote Monitoring
IE Browsing (Plug-In required), Chrome/Edge/Safari/Firefox plug-in free browsing, Ossia VMS Software, Provision Cam2 Mobile App *P2P WEB connetion always requires Plugin
Ethernet
100Mbps
ONVIF
Profile G/S/M

Connectivity

Network
RJ45 (+PoE)
Audio Connectivity
Audio input + Audio output
Alarm
Alarm in + Alarm out
SD Card
Event/Schedule based Main/Substream recording (Up to 256GB)
Wiegand
26Bit / 26Bit(10) / 34Bit / 37Bit / 42Bit / 46Bit / 58Bit / 64Bit (Output Only)
Power
DC Socket
Analog Video Output
CVBS out + Technician Port

Housing

PoE
Yes
Illumination
80m (2 High-Power IR LEDs)
Power Supply
DC12V/~1050mA / PoE/~11.5W
Protection Rate
Water Proof: IP67
Work Environment
-30°C~60°C, 10%~90% Humidity
Bracket
3-Axis Bracket
Dimensions
271.8x92.4x79.4mm
Weight (gross)
~1140g
Hard Reset Button
Yes
